| Model | KV-5500 |
| Type | CPU Unit |
| Power Voltage | 24 VDC (±10%) |
| Operating Ambient Temperature | 0 to 50 °C (no freezing)*1*2 |
| Relative Humidity | 10 to 95 % RH (no condensation)*1 |
| Storage Temperature | -20 to +70 °C*1 |
| Operating Environment | Best in an environment with minimal dust and corrosive gases |
| Altitude | Max. 2000 m |
| Noise Immunity | 1,500 Vp-p or more, pulse width 1 µs, 50 ns (based on noise simulator), Conforms to IEC standards (IEC61000-4-2/3/4/6) |
| Withstand Voltage | 1,500 VAC for 1 minute between power supply terminal and I/O terminal or external terminal and enclosure |
| Insulation Resistance | Over 50 MΩ (measured between power supply terminal and I/O terminal or external terminal and enclosure with a 500 V DC megohmmeter) |
| Overvoltage Category | II (When using KV-U7) |
| Pollution Degree | 2 |
| Intermittent Vibration (Shock Resistance) | Frequency 5 to 9 Hz, Half amplitude: 3.5 mm*3 Frequency 9 to 150 Hz, Acceleration: 9.8 m/s2*3 |
| Continuous Vibration (Shock Resistance) | Frequency 5 to 9 Hz, Half amplitude: 1.75 mm*3 Frequency 9 to 150 Hz, Acceleration: 4.9 m/s2*3 |
| Operation Control Method | Program storage method |
| I/O Control Method | Refresh method |
| Programming Language | Expanded Ladder, KV Script, Mnemonic |
| Number of Instructions | Basic instructions: 81 classes, 171 instructions Application instructions: 43 classes, 60 instructions Arithmetic operation instructions: 115 classes, 293 instructions Expansion instructions: 96 classes, 142 instructions Total: 335 classes, 666 instructions |
| Instruction Execution Speed | Basic instructions: 10 ns minimum Application instructions: 20 ns minimum |
| Program Capacity | Approx. 260k steps |
| Maximum Number of Installable Units | 16 units (48 units when expansion units are connected) |
| Maximum Number of I/O Points | Max. 3,096 points when expanded (KV-EB1S/KV-EB1R: when 2 units are expanded, using 64-point I/O units) |
| Input Relay R (Bit Devices) | Total 16,000 points 1 bit |
| Output Relay R (Bit Devices) | Total 16,000 points 1 bit |
| Internal Auxiliary Relay R (Bit Devices) | Total 16,000 points 1 bit |
| Link Relay B (Bit Devices) | Total 16,384 points 1 bit |
| Internal Auxiliary Relay MR (Bit Devices) | Total 16,000 points 1 bit |
| Latch Relay LR (Bit Devices) | Total 16,000 points 1 bit |
| Control Relay CR (Bit Devices) | 640 points 1 bit |
| Timer T (Word Devices) | 4,000 points 32 bit |
| Counter C (Word Devices) | 4,000 points 32 bit |
| Data Memory DM (Word Devices) | 65,535 points 16 bit |
| Extended Data Memory EM (Word Devices) | 65,535 points 16 bit |
| File Register FM (Word Devices) | 32,768 points × 4 memory banks 16 bit (Memory bank switching mode) 131,072 points 16 bit (Rotating ZF mode) |
| Link Register W (Word Devices) | Total 16,384 points 16 bit |
| Temporary Data Memory TM (Word Devices) | 512 points 16 bit |
| High-Speed Counter CTH (Word Devices) | 2 points 32 bit |
| High-Speed Counter Comparator CTC (Word Devices) | 4 points 32-bit (uses 2 high-speed counter points) |
| Index Register Z (Word Devices) | 12 points 32 bit |
| Control Memory CM (Word Devices) | 6,000 points 16 bit |
| Positioning Pulse Output | 2 points (100 kHz max. output frequency) |
| CPU Unit I/O | Inputs: 16 points, Outputs: 8 points |
| Program Memory (Power Off Hold Function) | Flash memory rewritable 100,000 times |
| Devices (Power Off Hold Function) | Battery backup for 5 years (operating ambient temperature 25 °C, during power off hold mode)*4 |
| Self-Diagnosis Function | CPU error, RAM error, others |
| Internal Current Consumption | CPU unit: 320 mA or less Expansion unit: KV-EB1S 15 mA or less, KV-EB1R 25 mA or less (Excluding drive current for input circuit) |
| Weight | CPU unit: Approx. 320 g Terminal block: Approx. 30 g Start block for KV-5500/5000/3000: Approx. 20 g Expansion unit: KV-EB1S Approx. 90 g, KV-EB1R Approx. 115 g |

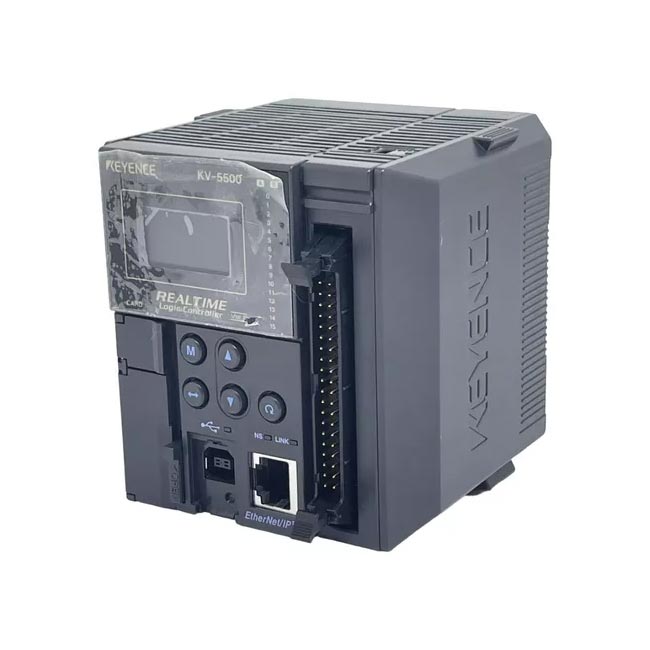

PLC Keyence KV-5500
8.124.000 ₫
Hãng sản xuất: Keyence
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT
